Designed for battery manufacturing in Vietnam, this industrial pure water system integrates multi-stage pretreatment, two-pass reverse osmosis (RO), and precision post-treatment to deliver stable, low-ion, low-impurity process water for battery slurry preparation, electrode cleaning, and electrolyte formulation with fully automated, low-maintenance operation.
Technical Specifications
This project was installed at Tianneng Battery's manufacturing facility in Vietnam, providing a customized industrial pure water production system for both lead-acid and lithium battery manufacturing lines.
The system is specifically designed to accommodate Southeast Asia's high-temperature, high-humidity climate, fluctuating raw water quality, and overseas factories with limited maintenance personnel. The treated water consistently meets the industrial pure water standards required by the battery industry and supports every stage of battery manufacturing.
Standard Process Flow
Raw Water Booster Pump → Multimedia Filtration → Activated Carbon Filtration → Precision Security Filtration → Two-Pass Reverse Osmosis (RO) → Constant-Pressure Pure Water Supply
Key Features
- Efficient removal of suspended solids, sediment, colloids, residual chlorine, heavy metal ions, and dissolved salts
- High desalination efficiency through two-pass RO technology
- Reduces calcium and magnesium hardness to prevent battery performance defects caused by ionic contamination
- PLC-based intelligent automation system
- Automatic constant-pressure water supply
- Scheduled membrane flushing
- Low-water-level and overload protection
- Real-time water quality monitoring
- Stable 24-hour continuous operation
- Low energy consumption and maintenance requirements
- Excellent resistance to corrosion in hot and humid tropical environments
- Designed for continuous production in overseas battery manufacturing facilities
Applications
This industrial pure water system is designed for battery manufacturers throughout Southeast Asia, serving critical production processes including:
- Battery slurry preparation
- Electrode cleaning
- Electrolyte preparation
- Cooling water circulation
- Laboratory testing
- Process water supply
Battery manufacturing requires extremely high water purity. Even trace concentrations of dissolved metal ions, impurities, or mineral salts can lead to:
- Battery self-discharge
- Capacity degradation
- Reduced production yield
- Shortened battery cycle life
- Product quality inconsistency
The system is ideal for:
- New overseas battery manufacturing plants
- Capacity expansion projects
- Water quality upgrades
- Existing pure water system retrofits
- Lithium battery and lead-acid battery production facilities
The solution fully complies with Vietnam's industrial water quality requirements and environmental regulations for the rapidly growing new energy battery industry.
Vietnam Tianneng Battery Industrial Pure Water Production Project
With the rapid expansion of Vietnam's new energy battery industry, Tianneng Battery's overseas manufacturing base requires a highly reliable source of industrial pure water to support large-scale battery production. Processes such as battery slurry preparation, electrode cleaning, electrolyte formulation, and equipment cooling demand consistently high-purity water to ensure product quality and manufacturing stability.
However, the local raw water source contains relatively high levels of dissolved salts, hardness minerals, and suspended impurities. If untreated water were used directly in production, residual ions and contaminants could result in incomplete electrode cleaning, reduced electrolyte purity, excessive ionic contamination within battery cells, shortened cycle life, and lower production yield.
To address these challenges, Baihuipu engineered a customized industrial pure water solution specifically designed for Vietnam's water quality characteristics, tropical climate, and overseas operating conditions with limited maintenance personnel.

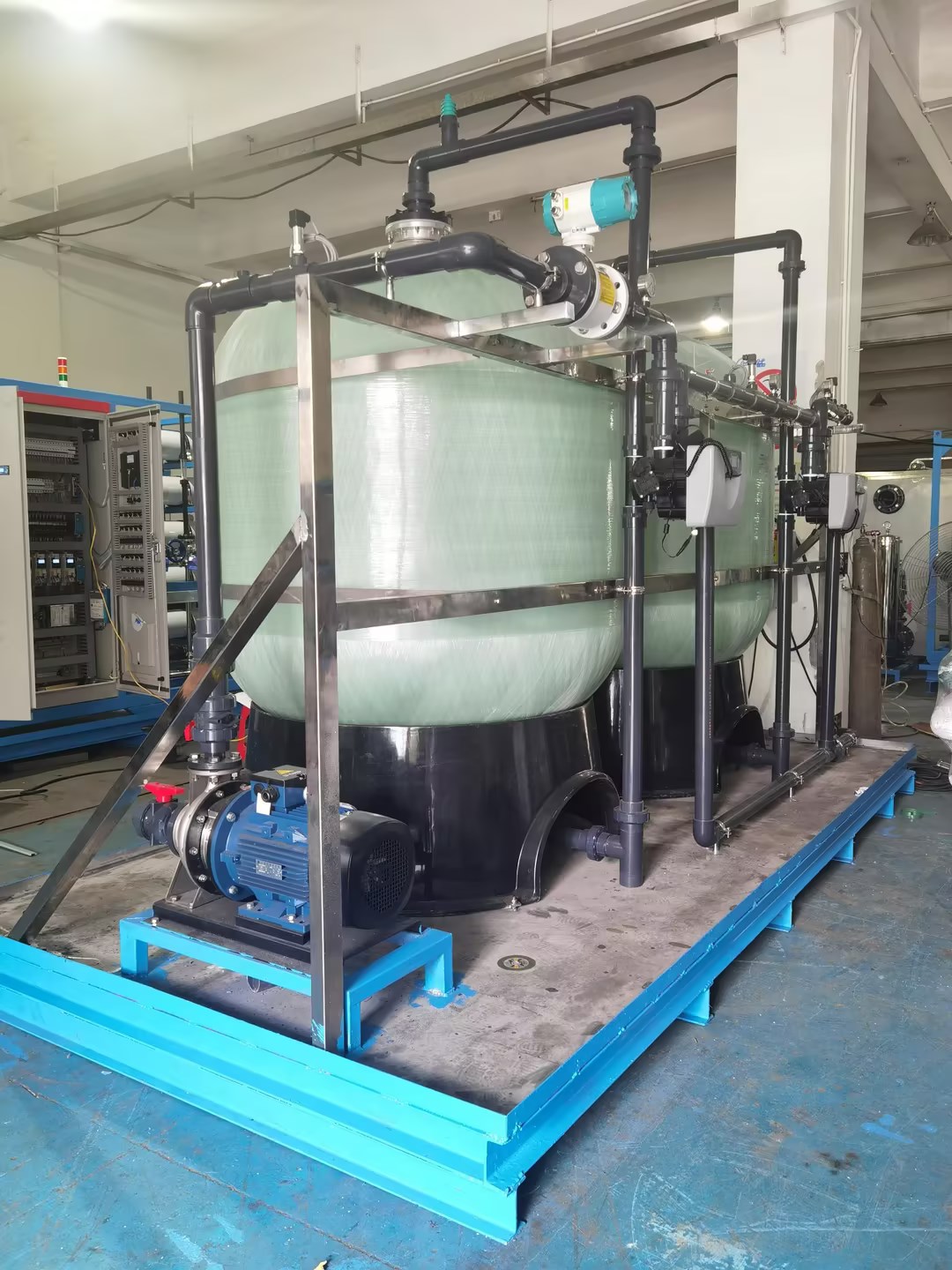

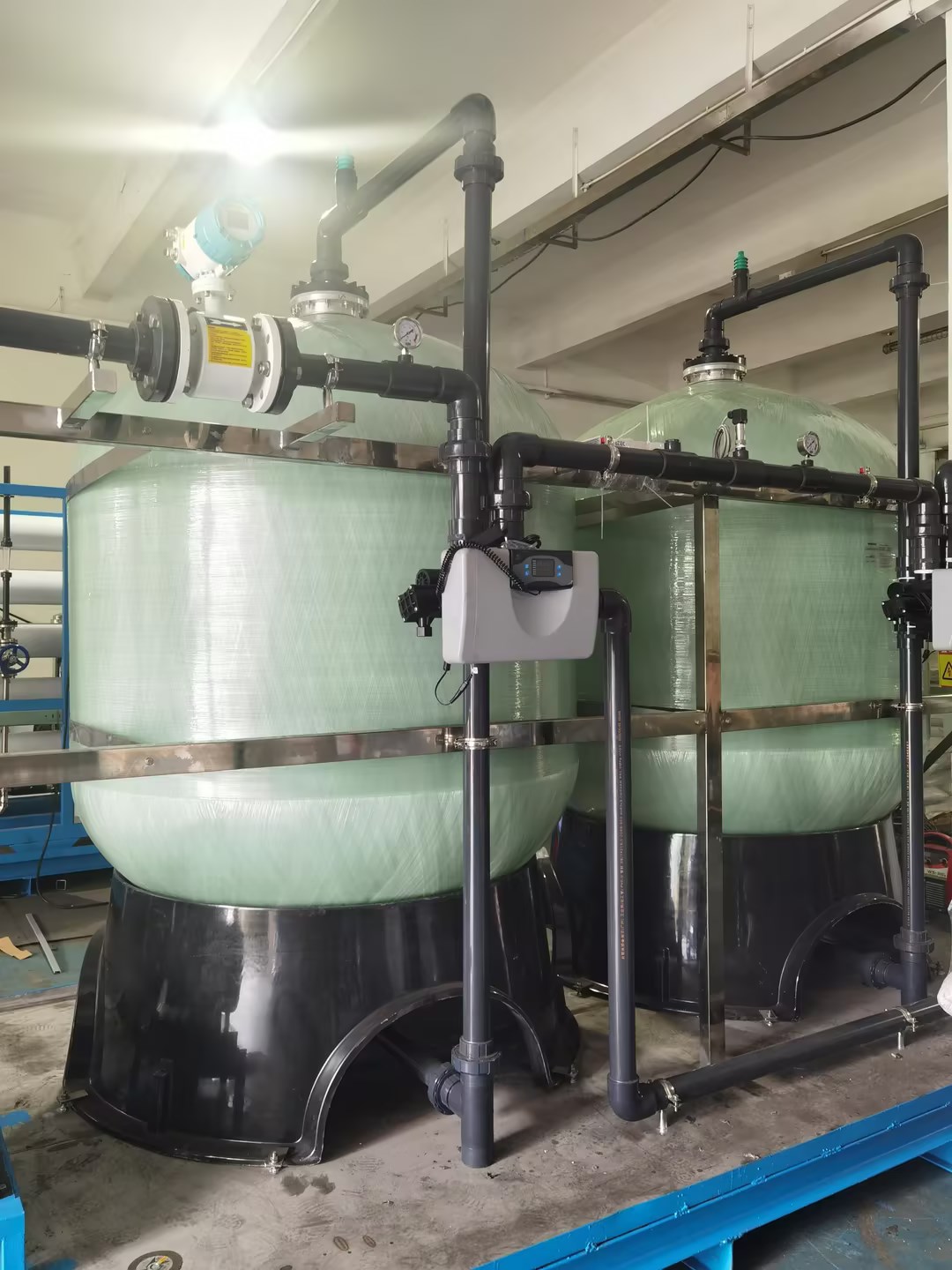

Raw water first passes through a multi-stage pretreatment system, where suspended solids, organic contaminants, and residual chlorine are progressively removed. This pretreatment process significantly improves feed water quality while protecting downstream reverse osmosis membranes against fouling, scaling, and premature aging.
Following pretreatment, the water enters a two-pass reverse osmosis (RO) system, which efficiently removes dissolved salts, hardness ions, and other ionic contaminants. The result is high-quality industrial pure water with low conductivity and stable quality, fully meeting the stringent requirements of battery manufacturing processes.
The complete system operates automatically under a PLC-based intelligent control platform, eliminating the need for continuous manual supervision. The automation system continuously adjusts production capacity according to fluctuations in plant water demand while maintaining stable outlet pressure and minimizing operating costs and energy consumption.
Since commissioning, the system has consistently delivered stable water flow, uniform water quality, and excellent resistance to fluctuations in raw water conditions. It provides a reliable supply of industrial pure water for battery slurry preparation, electrode cleaning, electrolyte mixing, equipment cooling, and other critical production processes.
By eliminating production risks associated with poor raw water quality, the project has significantly improved battery product quality, increased manufacturing yield, and enhanced the overall stability of overseas production operations.
Today, this project serves as an excellent benchmark for industrial pure water systems supporting battery manufacturing across Southeast Asia, demonstrating Baihuipu's expertise in delivering reliable, energy-efficient, and fully automated water treatment solutions for the global battery industry.
